Description
UDL Stepless Speed Variator
1. Speed regulation accuracy is 1 revolution/minute, which is the leader of similar products at present.
2. It can realize the speed change of the people from the lowest speed to the highest speed in the range of 1:5.
3. All transmission parts have been treated strictly, processed precisely and debugged, so their service life is long and the running noise is low.
4. It can be reasonably combined with gear reducer, cycloidal pinwheel reducer, worm gear reducer and so on, so as to meet the different requirements of output torque, minimum and maximum output speed in different occasions.

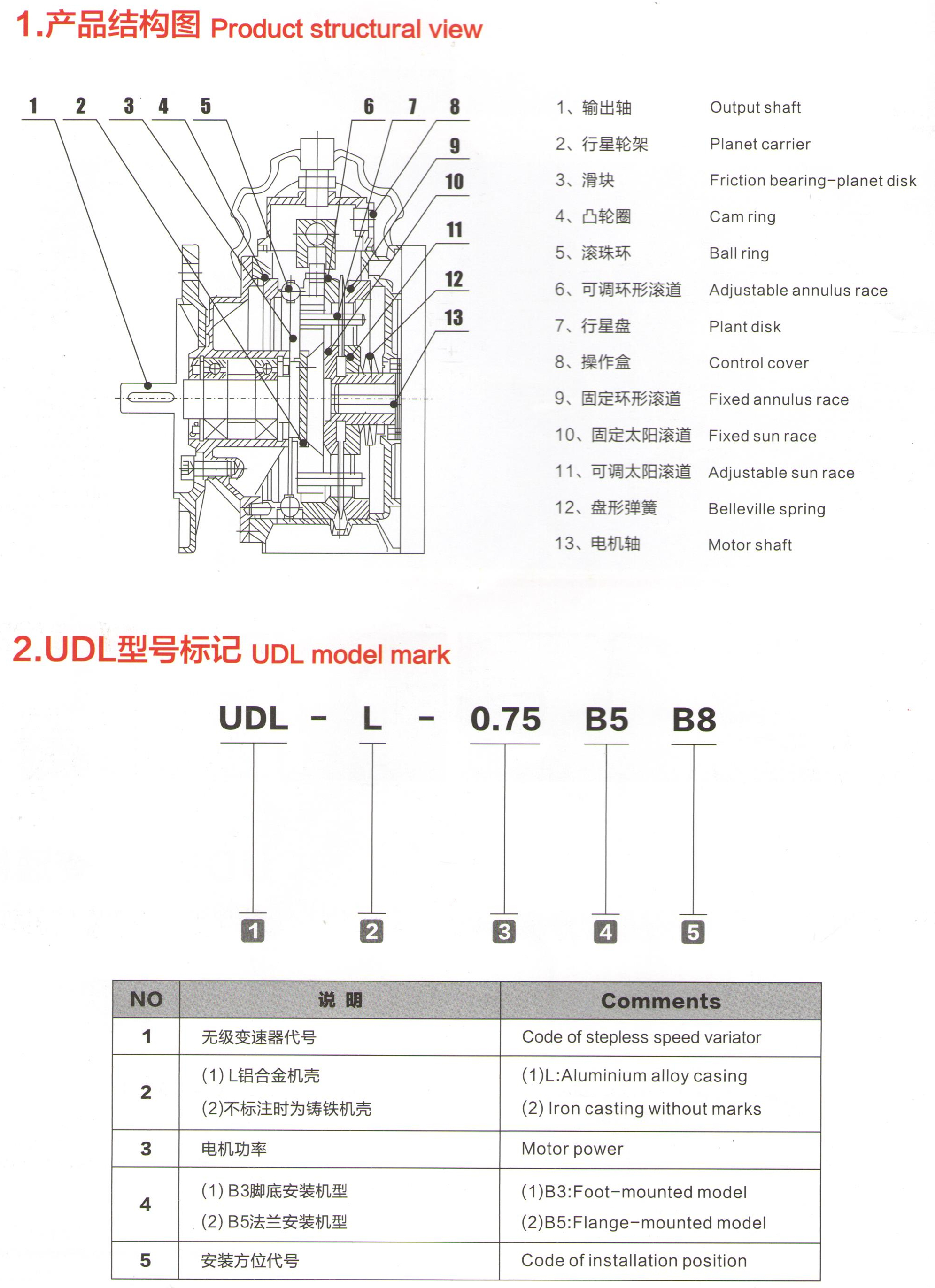

UDL Stepless Speed Variator Drawing
|
B
|
MODEL
|
I
|
N2（r/min）
|
M2（N.m）
|
|
0.18kw
|
UDL0.18
|
1.6-8.2
|
880-170
|
1.5-3
|
|
0.25kw
|
UDL0.25
|
1.4-7
|
1000-200
|
2-6
|
|
0.37kw
|
UDL0.37
|
1.4-7
|
1000-200
|
3-6
|
|
0.55kw
|
UDL0.55
|
1.4-7
|
1000-200
|
4-8
|
|
0.75kw
|
UDL0.75
|
1.4-7
|
1000-200
|
6-12
|
|
1.1kw
|
UDL1.1
|
1.4-7
|
1000-200
|
9-18
|
|
1.5kw
|
UDL1.5
|
1.4-7
|
1000-200
|
12-24
|
|
2.2kw
|
UDL2.2
|
1.4-7
|
1000-200
|
18-36
|
|
3.0kw
|
UDL3.0
|
1.4-7
|
1000-200
|
24-48
|
|
4.0kw
|
UDL4.0
|
1.4-7
|
1000-200
|
32-64
|
|
5.5kw
|
UDL5.5
|
1.4-7
|
1000-200
|
45-90
|
|
7.5kw
|
UDL7.5
|
1.4-7
|
1000-200
|
59-118
|
